The NEW Ninja is a fresh experience for budding Ninja Warriors in training, introducing brand NEW Funky accessories to the Funky Monkey Backyard Ninja range.
The NEW Ninja comes complete with climbing, swinging and strength building equipment to train in your backyard.
Just like a Ninja Warrior, learn to tackle the NEW Lache Bars, swing between the Monkey Bars and Ninja Grips and climb up and across more than 5 metres of Jungle Rope and the NEW 3m Cargo Wall.
The NEW Ninja is loaded with fun with room to add-on more Funky equipment to this modular frame – check out the recommended Add-ons.
Add-on the Firefighter Poles and the Combat Ladder to take The Ninja to another level in backyard ninja training.
Load-rated to 1,200kgs.

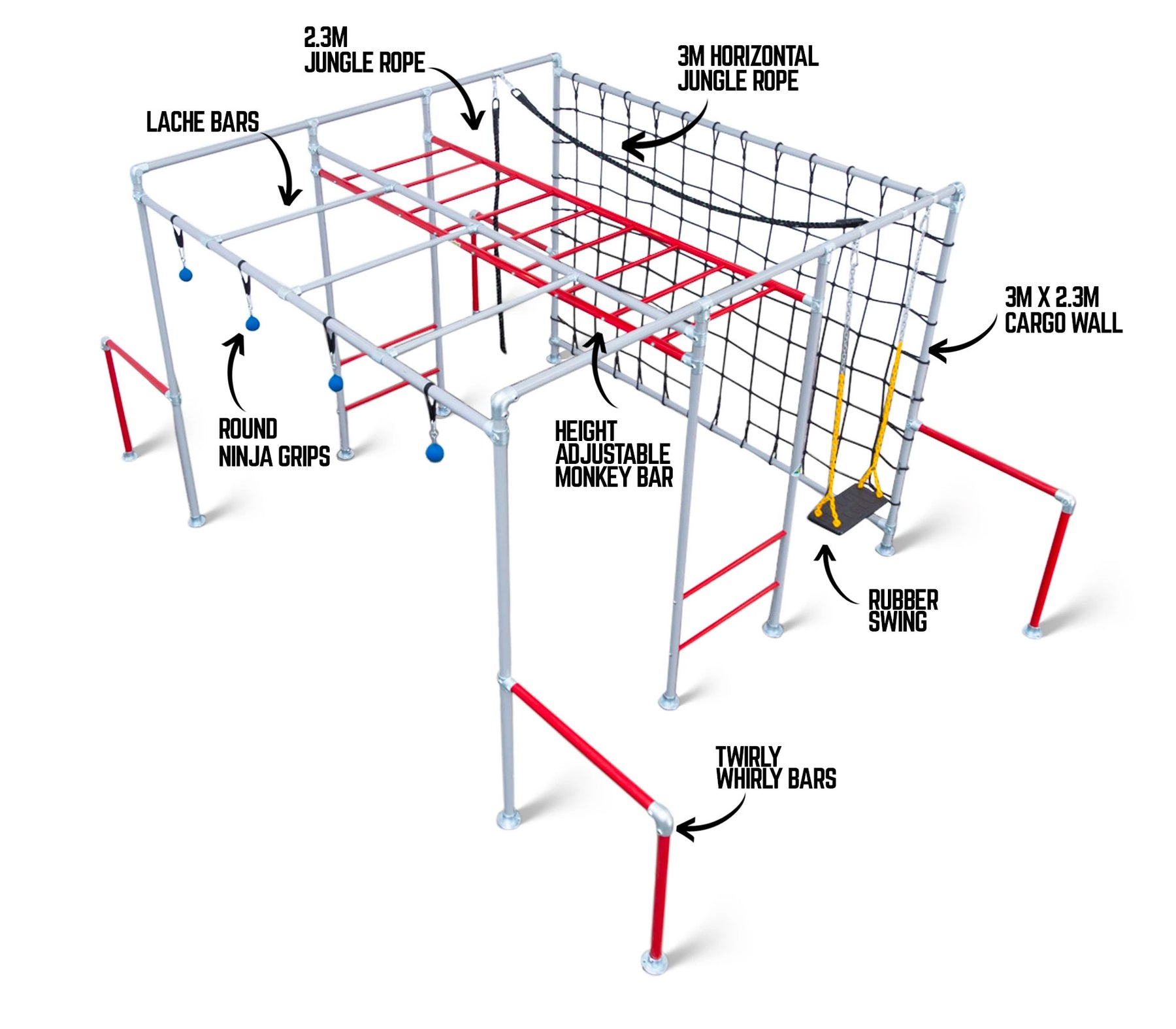

KEY FEATURES
- 3m length, nine rung (900mm), height adjustable monkey bar that grows with the kids from 1.2 up to 2.3 metres.
- Ascend up the 2.3m Jungle Rope and scurry across the 3m Horizontal Jungle Rope.
- Scramble up and over the Cargo Wall at 3m wide and 2.3m high.
- Take on the challenge of the Round Ninja Grips and build grip strength.
- Lache jump or swing across the Lache Bars – the perfect challenge for those who have mastered the monkey bars.
- Take some time out after your Ninja training and relax on the Rubber Swing.
- Free-standing and stabilised by Funky Monkey Bars unique design and the fun and functional 900mm Twirly-Whirly Bars.
- Super strong and stable, Australian made galvanised steel frame that’s completely free-standing.
- No need to concrete the footings into the ground, just peg into grass at each anchor point.
- 5m (L) x 3m (W) x 2.3m high
- The frame is built to Australian Standard AS4685 and certified by independent Certified Structural Engineers.
-
5m (L) x 3m (W) x 2.3m (H)
Click here to download plan & side view -
Box Quantity Box Code & Contents 1 A1 - 2 x 48/2950mm coloured pipe with 9 holes 2 B01 - 4 x 48/2300mm silver pipe with 2 holes 1 C1 - 8 x 48/900mm coloured pipe 1 D-13 - 13 x 25/850mm coloured pipe 3 F02 - 6 x 48/2950mm silver pipe 2 F05 - 4 x 48/2300mm silver pipe 1 I06 - 3 x 33/1040mm silver pipe 1 O02 - 1 x 3m Cargo Wall 2 Q06 - 4 x Short Long Tees (101L-D) 1 Q16 - 4 x Base Plates (131-D), 4 x Short Tees (101-D), 4 x Elbows (125-D), 4 x Pegs 1 Q22 - 8 x Base Plates (131-D), 8 x Short Tees (101-D), 4 x Elbows (125-D) 1 Q31 - 6 x Reducing Tees (101r-D) 1 T03 - 54 x Inserts, 28 x Washers, 54 x Hex Nuts, 27 x Bolts, 1 x 8mm Allen Key, 4 x Plastic Caps, 8 x Pegs, Stickers 1 JUNG/2710 - 1 x 2710mm Jungle Rope, 2 x Swing Hooks Total Boxes = 19 IMPORTANT: You will receive extra boxes NOT on the above list which will relate to the accessories you have ordered
